PCB board EC11 – PEC11
Compact PCB board designed to make cable connections easier and more flexible when working with EC11 encoders
2,00 €
– Simplified Wiring Solution

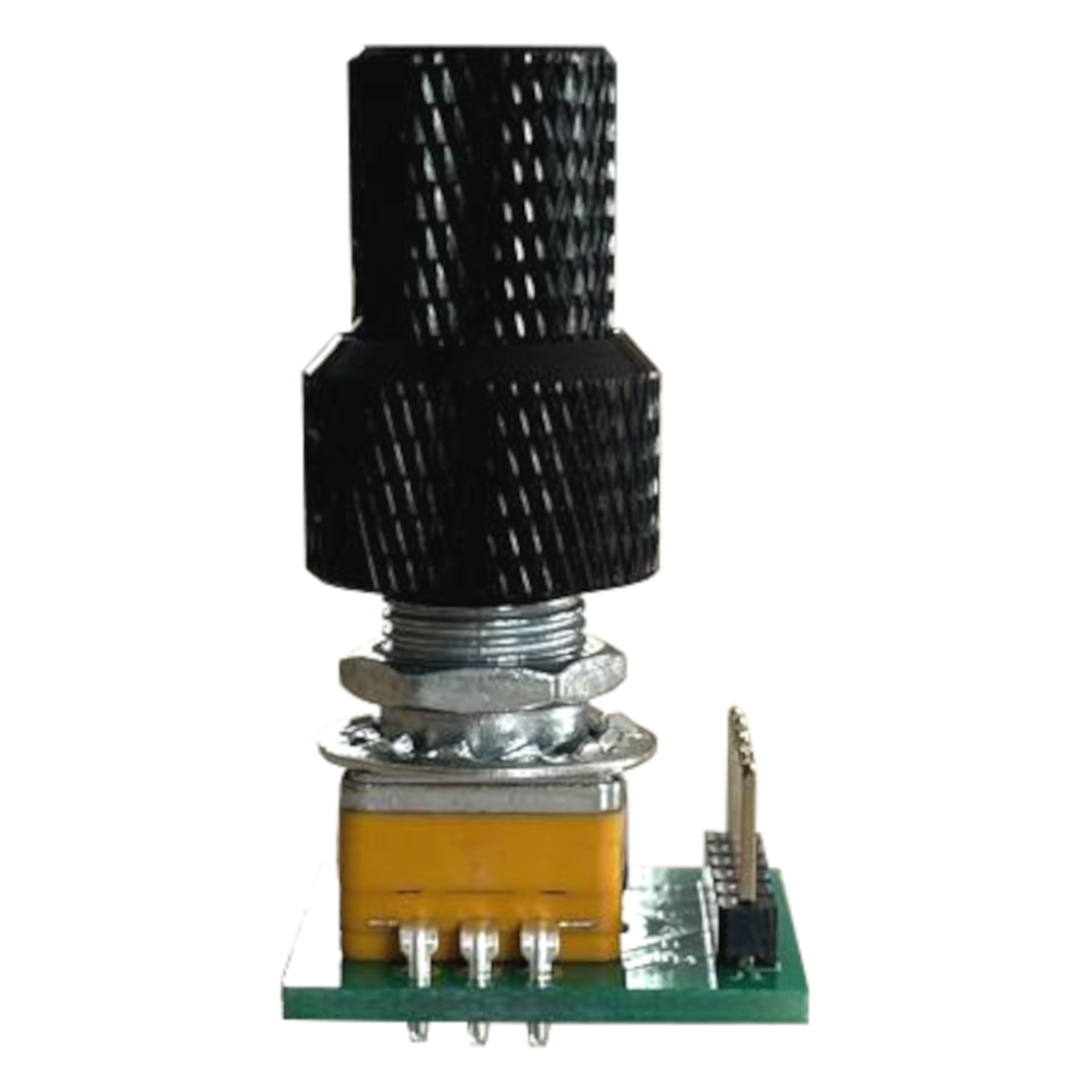

This compact PCB board is designed to make cable connections easier and more flexible when working with EC11 encoders. Perfect for customers who prefer soldering cables instead of directly attaching them to a PCB, this solution ensures a clean and organized setup.
Key Features:
-Flexible Connectivity: Allows for easy cable soldering, simplifying the installation process.
-Optional Quick-Connect Pins: Includes pin headers that can be soldered to the board, enabling the use of quick-connect connectors for added convenience.
-Compact Design: Small and efficient layout tailored for EC11 encoder integration.
-Enhanced Versatility: Ideal for prototyping, custom installations, or any project requiring modular encoder connections.
This PCB board is the perfect accessory to complement your EC11 encoders, providing a practical and versatile wiring solution for both enthusiasts and professionals.
- EC11 encoder family
- PEC11 encoders by BOURNS
- Which encoders is it compatible with?
✔ EC11 encoder family
✔ PEC11 encoders by BOURNS
- Does the board come with the 6-pin connector pre-soldered?
No, the 6-pin connector is NOT pre-soldered. This allows users to choose whether to solder the connector directly to the board or use wires for more flexible installation.
- What are the pin functions on the board?

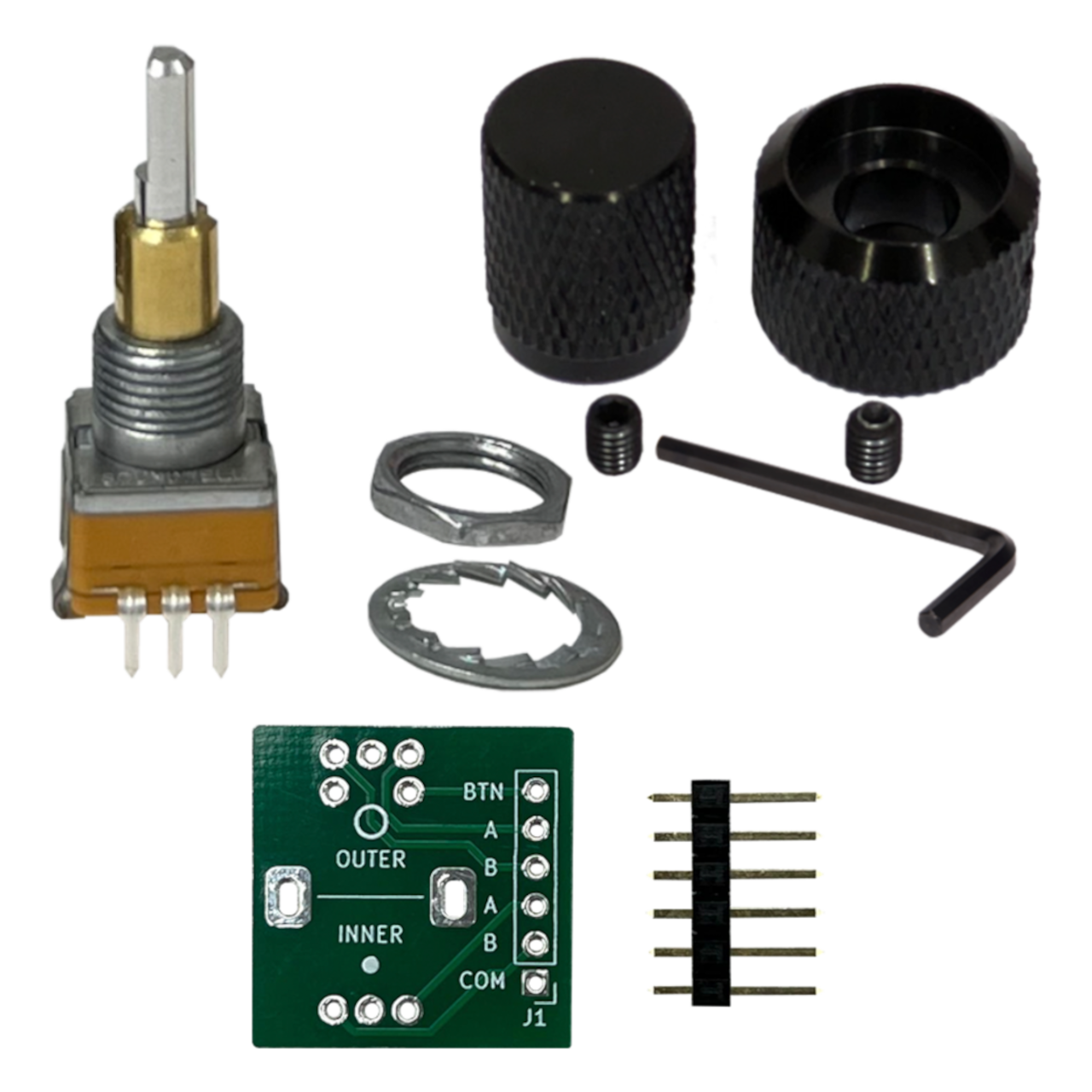

The board features a J1 connector with the following pinout:
- BTN → Push button output (if the encoder includes a button)
- A (Outer) → Outer encoder signal A
- B (Outer) → Outer encoder signal B
- A (Inner) → Inner encoder signal A
- B (Inner) → Inner encoder signal B
- COM → Common ground (BTN, Inner Encoder and Outer Encoder)
